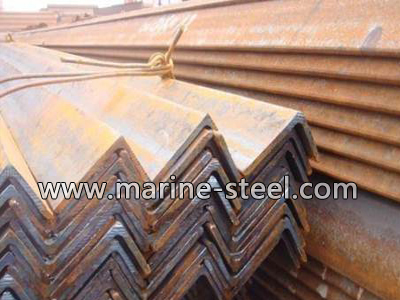

RINA A420 L shape steel bar with good toughness properties, higher strength. RINA A420 L shape steel bar are mainly used to contribute hull of ships and the cranes of break bulker and vessels in low temperature oceans. All of our stock is the high quality RINA A420 L shape steel bar shipbuilding steel plate.
Key words: RINA A420 L shape steel bar, RINA A420 Ocean steel, RINA A420 shipbuilding steel, RINA A420 offshore engineering steel
RINA A420 L shape steel bar specifications: 200 × 90 × 8 ×14, 200 × 90 × 9 × 14, 200 × 90 ×10 ×14, 250 × 90 × 9 × 14, 250 × 90 × 9 × 15, 250 × 90 × 10 × 15, 250 × 90 × 11× 16, 250 × 90 × 12 × 16, 300 × 90 × 10 × 16, 300 × 90 × 11× 16, 300 × 90 × 11 × 16, 300 × 90 × 12 × 17, 300 × 90 × 13 × 17, 350 × 100 × 11 × 17, 350 × 100 × 12 × 17, 400 × 100 × 11.5 × 16, 400 × 100 × 12 × 18, 400 × 100 × 13 × 18, 450 × 125 × 11.5 × 18
RINA A420 L shape steel bar chemical composition:
Grade |
C max |
Si |
Mn max |
P max |
S max |
Als |
N max |
Nb max |
V max |
Ti max |
B max |
A420 |
0.21 |
0.10-0.55 |
1.7 |
0.035 |
0.035 |
0.015-0.08 |
0.20 |
0.02-0.05 |
0.04-0.10 |
0.02 |
0.005 |
RINA A420 L shape steel bar Mechanical Property:
Grade |
Mechanical Property |
Charpy V Impact Test |
||||
Yield Min Mpa |
Tensile Mpa |
Elongation Min % |
Degree |
Energy 1 (J) |
Energy 2(J) |
|
A420 |
420 |
530-680 |
18% |
0 |
28 |
42 |
JW steel keeps more than 10,000 tons hot rolled and cold rolled RINA A420 L shape steel bar , RI/A420 shipbuilding steel in stock each month. We can meet our customer’s any quantity request. Based on these stock source, our advantage industry spread into steel process like: cutting ( any size and any shape ) drilling, welding, milling, machining and steel structure.
