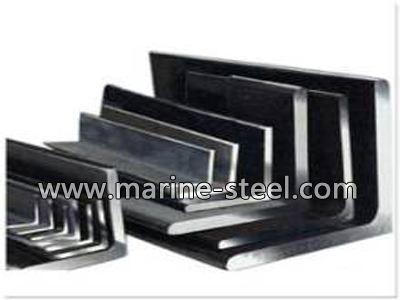

DNV Grade B L shape steel bar

DNV Grade B L shape steel bar is a kind of shipbuilding steel. DNV Grade B L shape steel bar with good toughness properties, higher strength and can be used in ship's hull structure. The majority of our stock is the high quality DNV Grade B L shape steel bar shipbuilding steel plate. We keep large amounts of shipbuilding steel in stocks.

DNV Grade B L shape steel bar specifications: 200 × 90 × 8 ×14, 200 × 90 × 9 × 14, 200 × 90 ×10 ×14, 250 × 90 × 9 × 14, 250 × 90 × 9 × 15, 250 × 90 × 10 × 15, 250 × 90 × 11× 16, 250 × 90 × 12 × 16, 300 × 90 × 10 × 16, 300 × 90 × 11× 16, 300 × 90 × 11 × 16, 300 × 90 × 12 × 17, 300 × 90 × 13 × 17, 350 × 100 × 11 × 17, 350 × 100 × 12 × 17, 400 × 100 × 11.5 × 16, 400 × 100 × 12 × 18, 400 × 100 × 13 × 18, 450 × 125 × 11.5 × 18

DNV Grade B L shape steel bar chemical composition:

Grade

C max

Si max

Mn

P max

S max

Als min

NV B

0.21

0.35

0.80-1.20

0.035

0.035

-

CE: C+1/6Mn ≤ 0.40%
Cu ≤ 0.35%,Ni ≤ 0.30%

DNV Grade B L shape steel bar Mechanical Property:

Grade

Rm

(MPa)

Re(MPa) min

A% min

Akv/J min

E.T °C

Thickness (mm)

≤ 50

>50-70

>70-100

L

C

L

C

L

C

NV B

400-520

235

22

0

27

20

34

24

41

27

Related products: DNV Grade A L shape steel bar, DNV Grade B angle steel, DNV Grade B bulb flat steel bar

JW steel keeps more than 10,000 tons hot rolled and cold rolled DNV Grade B L shape steel bar, NV B shipbuilding steel in stock each month. We can meet our customer’s any quantity request. Based on these stock source, our advantage industry spread into steel process like: cutting ( any size and any shape ) drilling, welding, milling, machining and steel structure.
