Home > Marine angle steel > NK AH36 angle steel

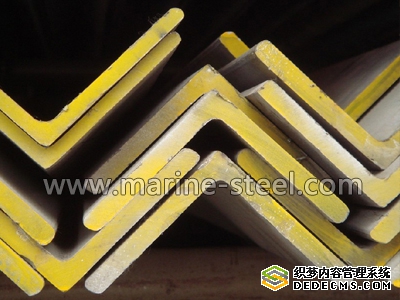

NK AH36 angle steel

NK AH36 angle steel with good toughness properties, higher strength. NK AH36 angle steel are mainly used to contribute hull of ships and the cranes of break bulker and vessels in low temperature oceans. All of our stock is the high quality NK AH36 angle steel shipbuilding steel plate.

NK AH36 angle steel specifications: 100× 75 × 7/10, 100×75×8/10, 125 × 75 × 7/10, 125×75×8/10, 150 × 90 × 9/12, 150×90×10/12, 150×100×12

NK AH36 angle steel chemical composition:

Grade

C max

Si max

Mn

P max

S max

Als min

Ti max

Cu max

Cr

max

Ni

max

Mo

max

Nb

V

AH36

0.18

0.50

0.90-1.60

0.035

0.035

0.015

0.02

0.35

0.20

0.40

0.08

0.02-0.05

0.05-0.10

Note: Generally speaking CE will be ≤ 0.40%. If the delivery condition is TMPC, the CE will be : ≤ 0.36% (thickness ≤ 50mm),≤0.38%( when the thickness >50-100).
Ceq% =(C+Mn)/6+(Cr+Mo+V)/5+(Ni+Cu)/15.

NK AH36 angle steel Mechanical Property:

Grade

Rm

(MPa)

Re(MPa) min

A% min

Akv/J min

E.T °C

Thickness (mm)

≤ 50

>50-70

>70-100

L

C

L

C

L

C

K A36

490-630

355

21

0

34

24

41

27

50

34

Related products: NK AH32 angle steel, NK AH36 bulb flat steel bar, NK AH36 L shape steel

JW steel keeps more than 10,000 tons hot rolled and cold rolled NK AH36 angle steel, NK36 shipbuilding steel in stock each month. We can meet our customer’s any quantity request. Based on these stock source, our advantage industry spread into steel process like: cutting ( any size and any shape ) drilling, welding, milling, machining and steel structure.
